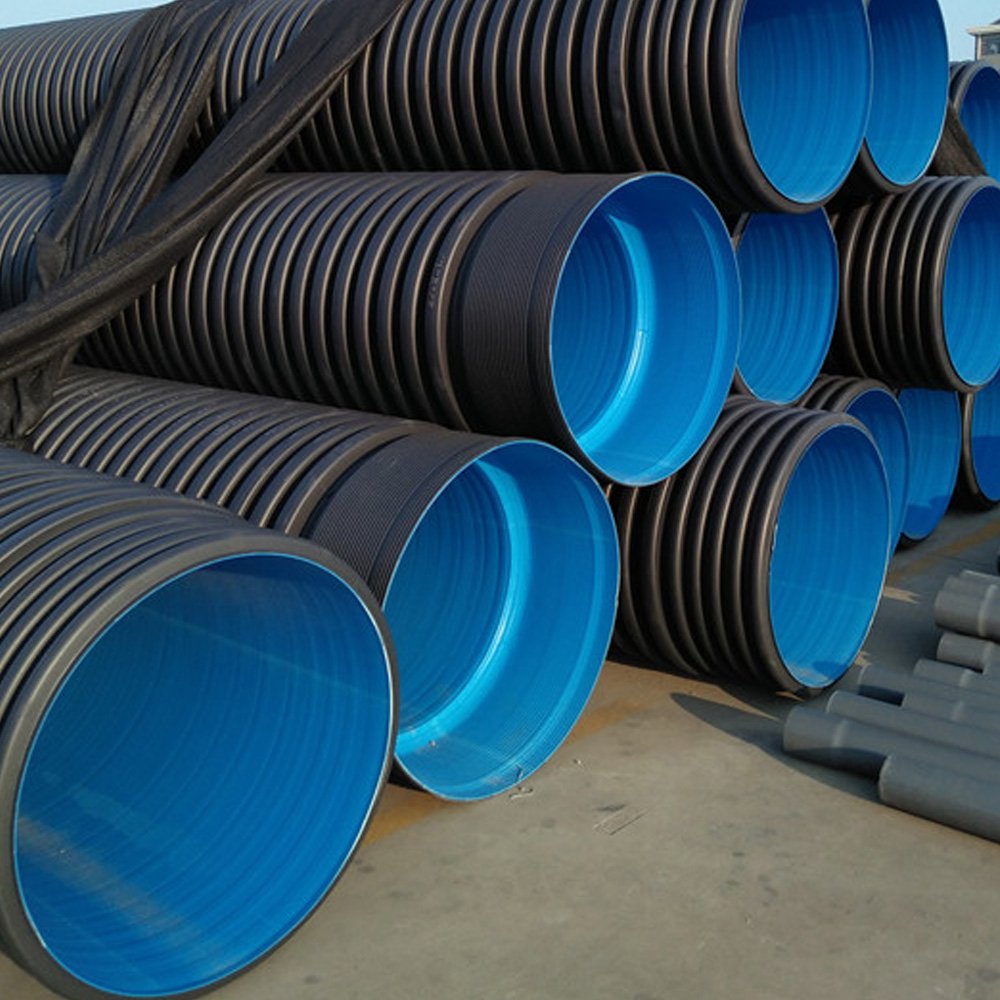

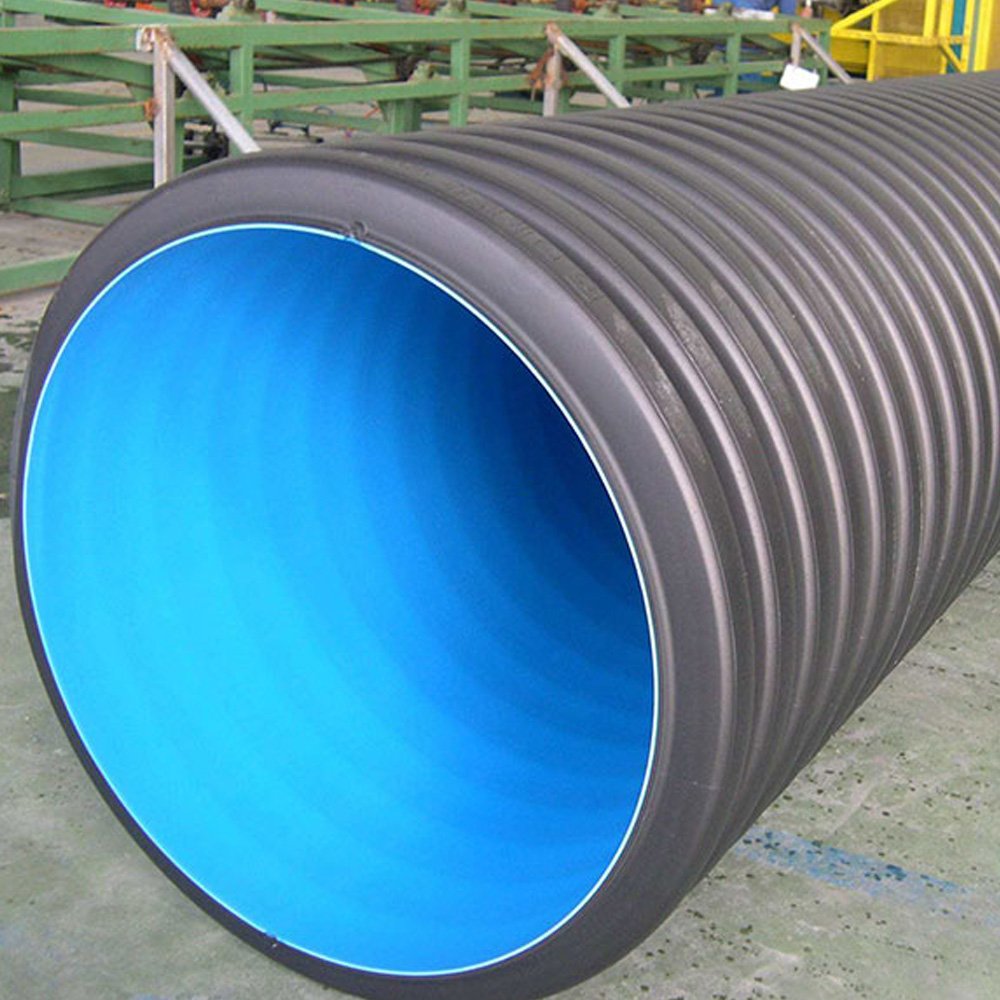

800mm HDPE Double Wall Pipe

• • Durable and Long-Lasting: This HDPE double wall corrugated pipe is designed to last for 50 years under normal conditions, ensuring a long-lasting solution for water drainage and waste sewage applications.
  • High-Quality Material: Made from high-density polyethylene (PE) material, this pipe is resistant to corrosion and abrasion, making it ideal for harsh environments.
  • Versatile Application: The pipe is suitable for water drainage and waste sewage applications, catering to a wide range of user needs.
  • Easy Installation: The socket end joint with rubber ring connection makes it easy to assemble and install, reducing labor costs and time.
  • Compliant with International Standards: Manufactured in accordance with ISO 9001 standards, this pipe meets the highest quality and safety requirements, providing users with peace of mind.
  •

  • Material	HDPE
    Length	6M or 12M
    Lifespan	50 years
    Advantage	Corrosion resistance
    Diameter	DN800mm
    Color	Black
    appropriate temperature	-40~60℃
    Working pressure	SN2-12
    Application	Drainage and irrigation

  • HDPE double-wall corrugated Pipe
    DN(mm)	110	160	225	300	400	500	600	800	1000	1200
    Min lD	92.5~93.5	144.5~145.5	220	294	392	490	588	785
    OD	110	160±0.7	255	330	456	572	690	925
    O.D.tolerance	±3	±3	±3	±3	±3	±3	±3	±3
    Min Thinkness	≥1.2	≥1.5	≥1.7	≥2.0	≥2.5	≥3.0	≥3.5	≥4.5
    Bellmouth ID	117		264-269	348-351	465-469	549-553	668-672	888-895
    Min Bellmouth ID	103		≥55	≥64	≥74	≥85	≥96	≥118



  • It is socket connection. The rubber and fittings like Tee and elbow offering well from Globalgolfconstruction.

• 800mm HDPE Double Wall Pipes is perfect for irrigation of golf course well main water pipe . irrigate holes according to requirement

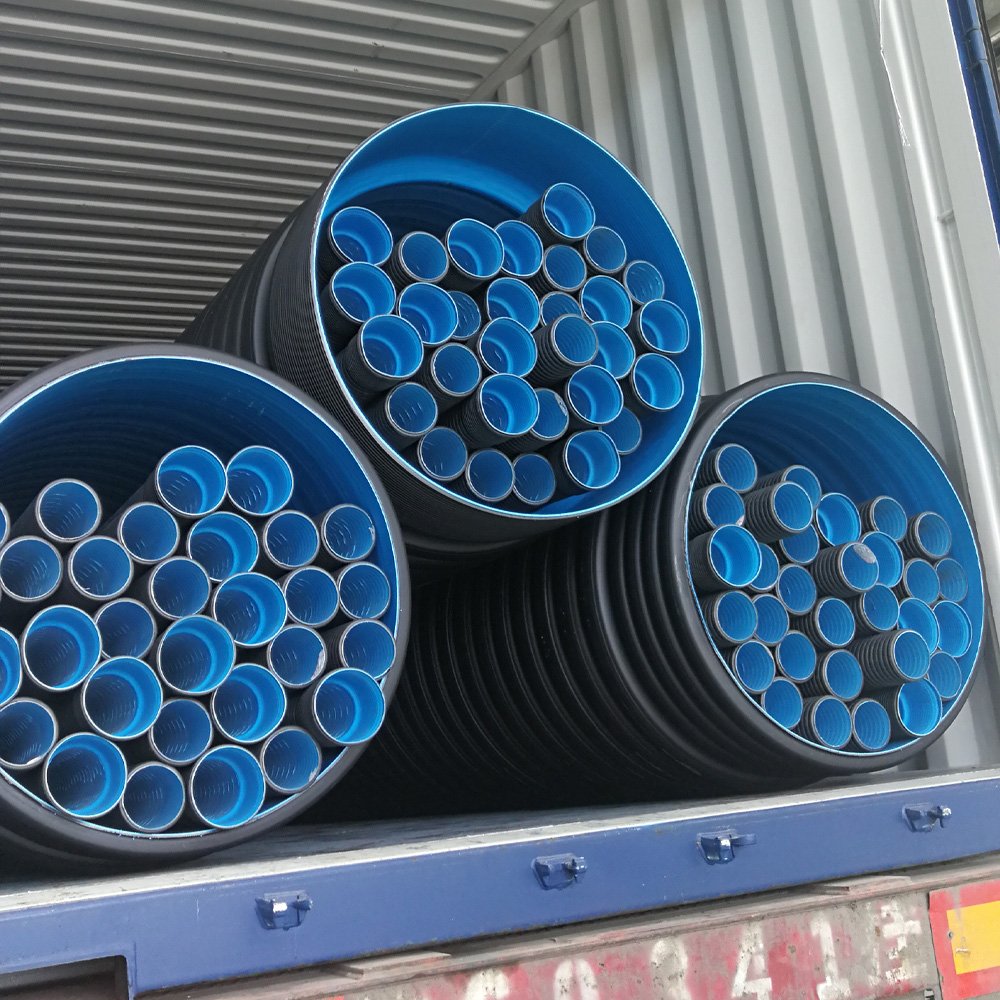

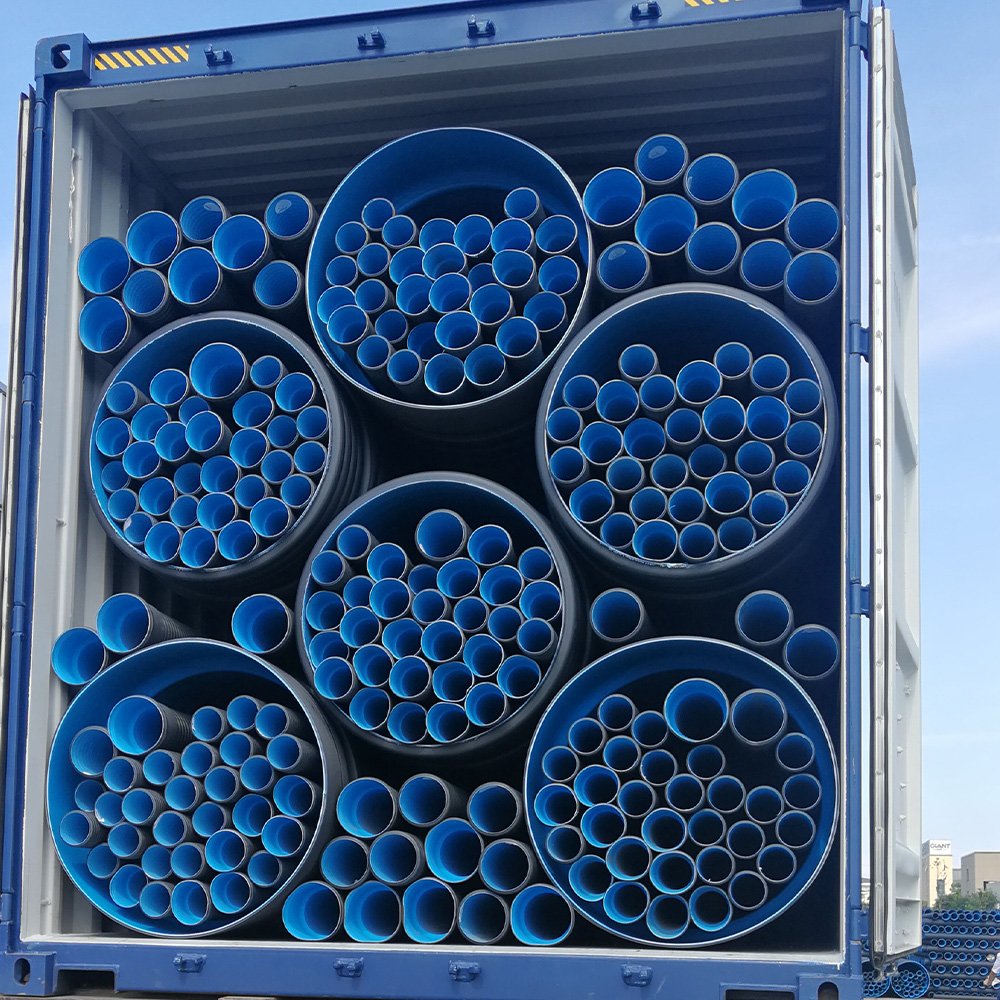

• For saving delivery space and cost, normally suggest consider HDPE double wall size1200mm,1000mm. 800mm ,300mm, 160mm and 110mm etc, Smaller size insert into bigger size pipe
•
• Contact Globalgolfconstruction for your golf course project.
